ELCON CATV SYSTEM
| ELCON CATV SYSTEM | |
|
ELCON CATV SYSTEM BLOCK DIAGRAM |
|
|
|
|
ELCON CATV SYSTEM
ELCON CATV SYSTEM is designed to receive, amplify and distribute radio and TV signals at sea.
The exellent performance of the system is based on the compact and sophisticated design. The Omnidirectional Antenna is the obvious choice for vessels that require a high quality reception of weak and strong signals simultaneously when the ship is close to the coast line. |
-

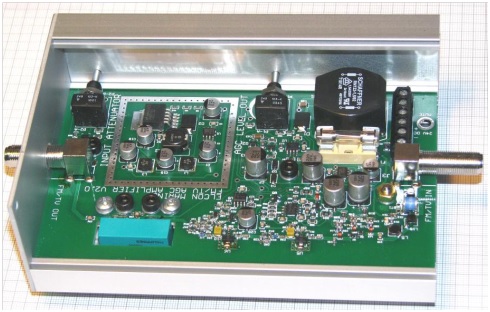

FM-TV Amplifier with AGC Read more
FM/TV DISTRIBUTION AMPLIFIER
- – One Piece Body Design
- – FM/VHF/UHF, DAB, DVB-T Amplifier
- – AGC Automatic Gain Control
- – Frequency 47-860 MHz
- – Amplication 40-45dB
- – Max output level 120 dBu
- – High Return Loss
- – Impedance: 75 Ohms
- – F-Connector
-
AM Amplifier with AGC Read more
AM RADIO DISTRIBUTION AMPLIFIER
- – One Piece Body Design
- – AM Amplifier
- – AGC Automatic Gain Control
- – Frequency 150kHz-30MHz
- – Amplication 40-45dB
- – Max output level 120 dBu
- – High Return Loss
- – Impedance: 75 Ohms
- – F-Connector
-

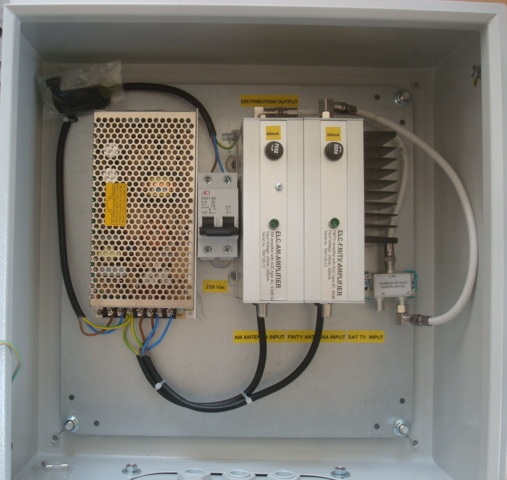

Headend Distribution Amplifier Read more
DISTRIBUTION AM/FM, TV, DVB-T AMPLIFIER
- – One Piece Body Design
- – AM/FM, VHF/UHF, DAB, DVB-T Signal Amplifier
- – Frequency 150kHz-860 MHz
- – High Gain 40-45dB
- – High Return Loss
- – Impedance: 75 Ohms
- – F-Connector
-
ELC-CATV-01 System Read more
COMPLETE ELCON CATV SOLUTION
- This ELC-CATV-01 System contents:
- – 1 pcs. AM Marine antenna
- – 1 pcs. TV/FM Marine Antenna
- – 1 pcs. Headend Distributor Amplifier
- – 1 pcs. Repeater Amplifier
- – 1 set of Splitter/Tap-off
- – 20 pcs Radio/TV outlet
- – 100mtrs coax cable
-
AM Marine Antenna Read more
Receiving and Amplifier AM Signal 150kHz-30MHz
- – One Piece Body Design
- – AM Radio signal Receiving and Amplifying
- – Frequency 150kHz-30 MHz
- – High Gain 40-45dB
- – Max output level AM 110 dBu
- – High Return Loss
- – Impedance: 75 Ohms
- – F-Connector
-
Omnidirectional Antenna Read more
FM,DAB, DVB-T,VHF/UHF Antenna
- – One Piece Body Design
- – FM/TV, DAB, DVB-T signals Receiving and Amplifying
- – Frequency 40MHz-862MHz
- – High Gain 40-45dB
- – Max output level 120 dBu
- – High Return Loss
- – Impedance: 75 Ohms
- – F-Connector
-

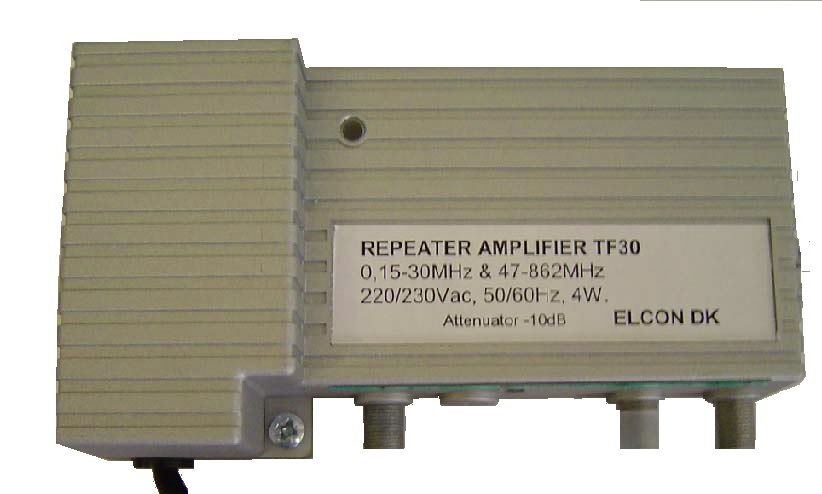

REPEATER AMPLIFIER Read more
AM REPEATER AMPLIFIER PUSH-ON F CONNECTOR
- – One Piece Body Design
- – AM, FM and TV Repeater Amplifier
- – Frequency 150kHz-860Mz
- – Max 30 dB Gain
- – Max output level 120 dBu
- – High Return Loss
- – Impedance: 75 Ohms
- – F-Connector
